Stainless Steel Glass Clamp

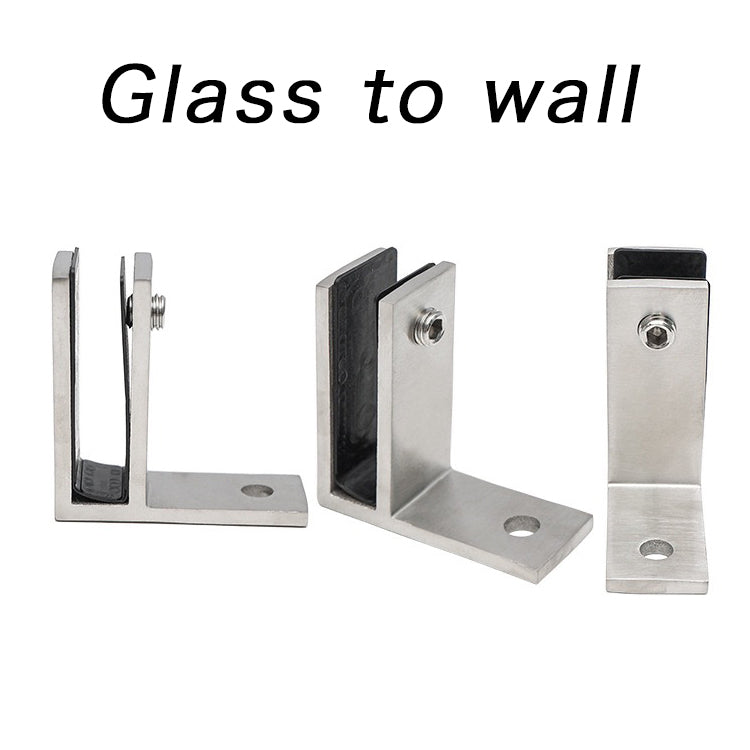

Glass to wall / Matte black

$6.03

Stainless Steel Glass Clamp

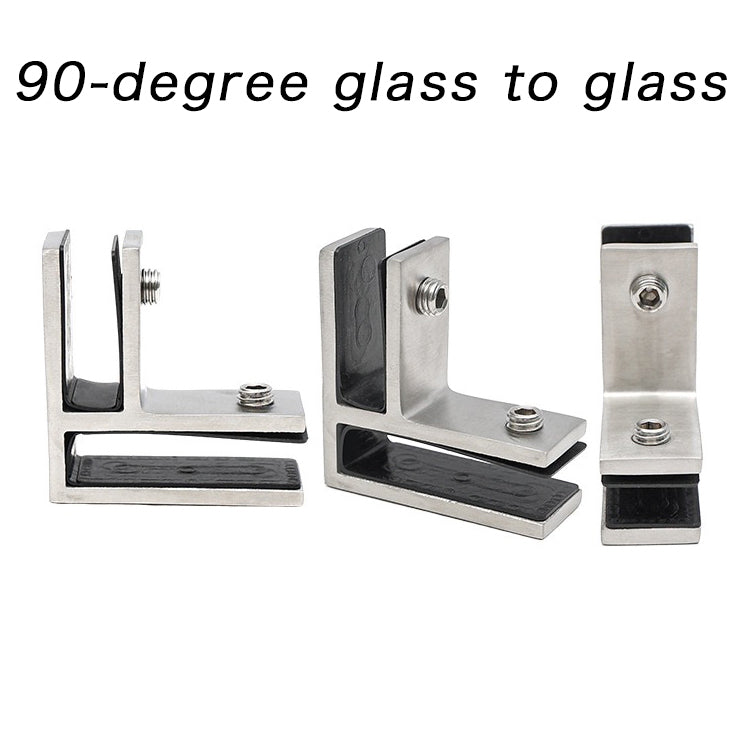

Name Glass to wall 180-degree glass to glass 90-degree glass to glass

Color Matte black Satin Polished

Material：304 stainless steel

$6.03

Made with care

Great value

Elegant design

Quality materials

A versatile stainless steel glass clamp designed for modern railing and glass fixing systems. Available in multiple structural styles and suitable for different glass thickness options, including 12 mm and 18 mm glass. Offered in 304, 316, and 2205 stainless steel with matte black, satin, and polished finishes.

Stainless Steel Glass Clamp

The ESQhardware stainless steel glass clamp is designed for secure and elegant glass fixing in contemporary architectural railing systems. With its minimalist appearance and flexible configuration options, it is well suited to a variety of glass railing and glass support applications in residential and commercial environments. Model G01 is offered in multiple clamp configurations for different installation needs, including options for 12 mm and 18 mm glass. Available in both 90-degree corner clamp and 180-degree inline clamp versions, this series provides a practical and visually clean solution for modern glass connection designs. The product is available in 304 stainless steel, 316 stainless steel, and 2205 stainless steel, with finish options including matte black, satin, and polished to match different project styles and design preferences.

Key Features

Designed for modern glass railing and glass fixing applications Available in multiple clamp structures for different connection needs Suitable for 12 mm and 18 mm glass options Includes 90° corner and 180° inline style solutions Available in 304 / 316 / 2205 stainless steel Offered in matte black, satin, and polished finishes Clean and compact appearance for contemporary architectural projects

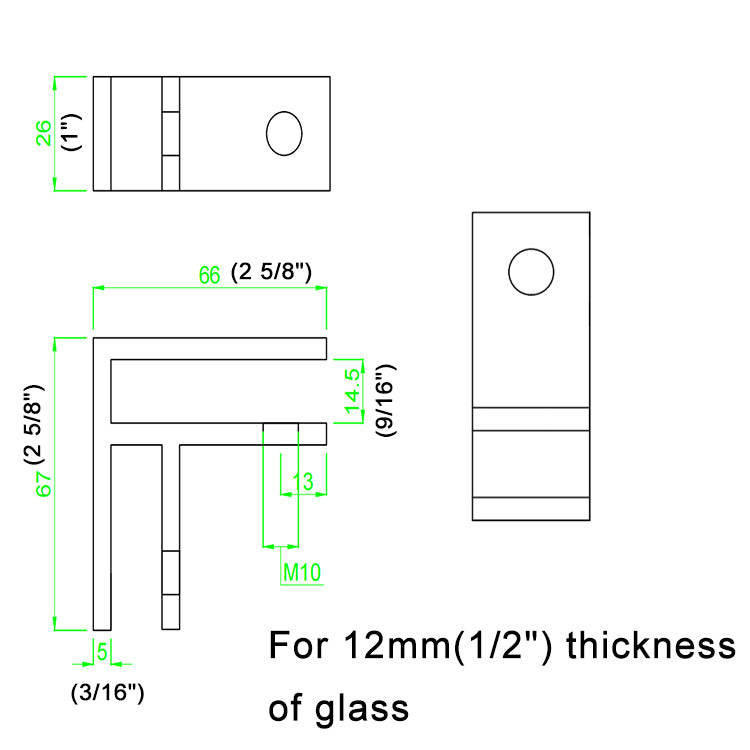

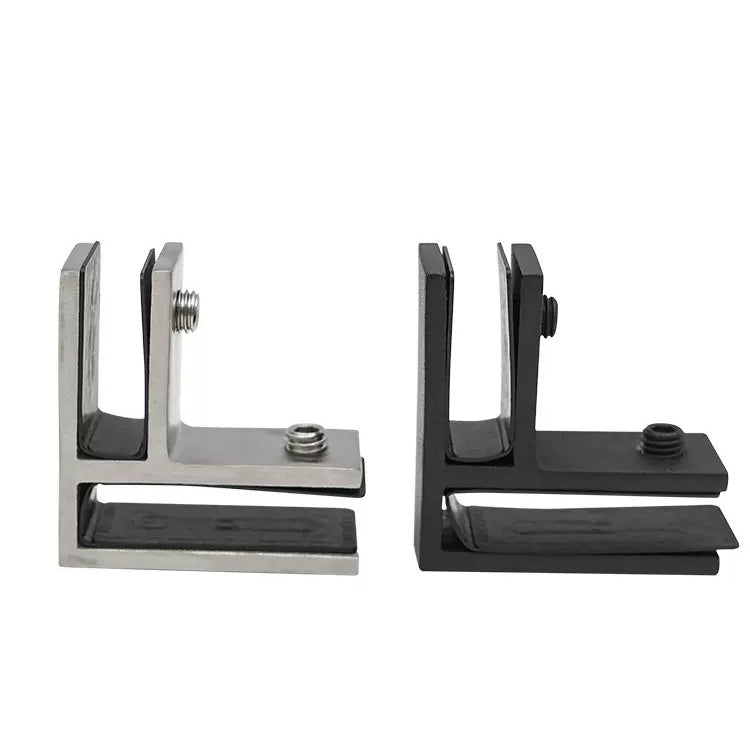

90° Glass Clamp for 12 mm Glass

This version is designed for 12 mm (1/2") glass and is suitable for right-angle glass connection applications. Based on the drawing, the overall reference dimensions are approximately: 66 mm length 67 mm height 26 mm width This option is suitable for projects requiring a compact corner clamp structure.

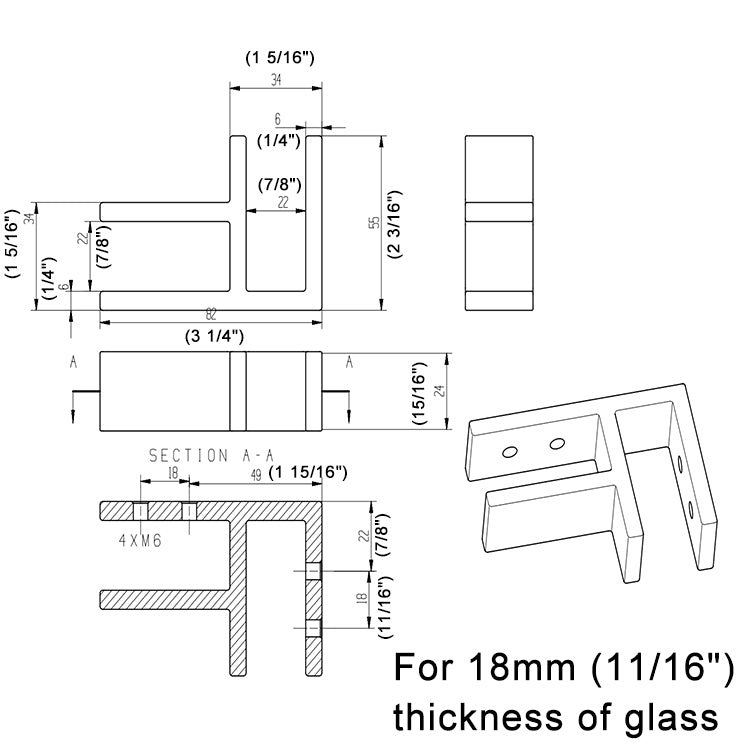

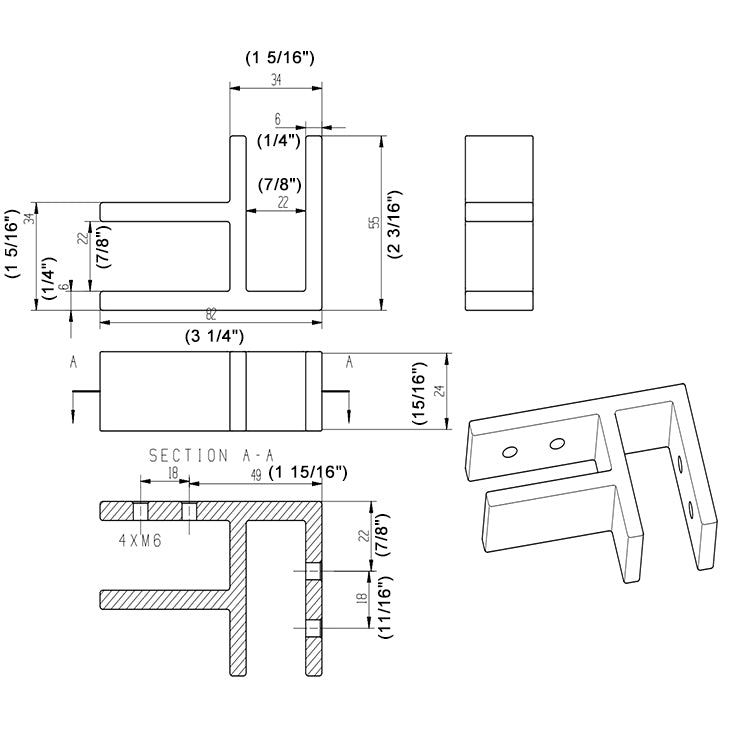

90° Glass Clamp for 18 mm Glass

This version is designed for 18 mm (11/16") glass and provides a larger clamp structure for thicker glass applications. Based on the reference drawing, the overall dimensions are approximately: 83 mm length 55 mm height 24 mm width This option is suitable for projects requiring a stronger-looking clamp profile for thicker glass panels.

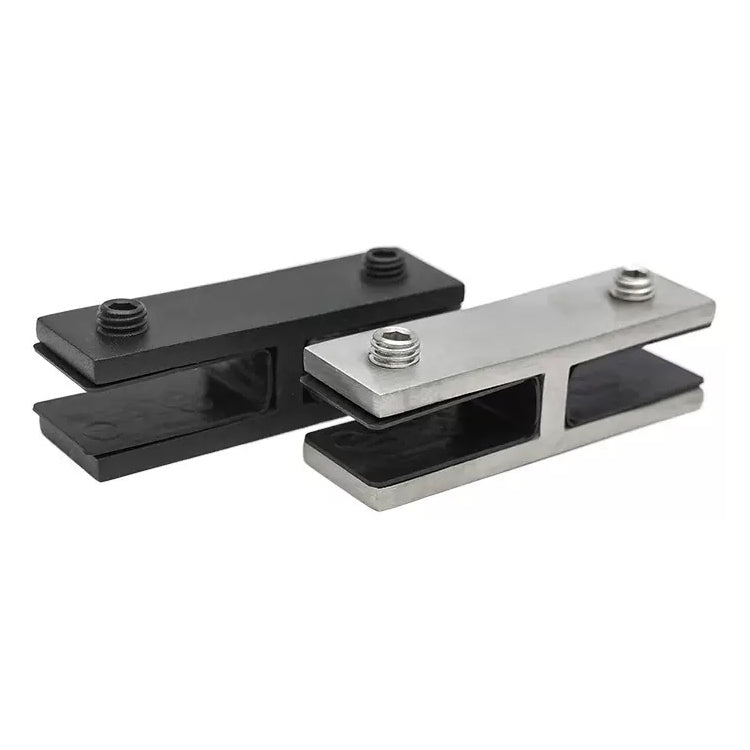

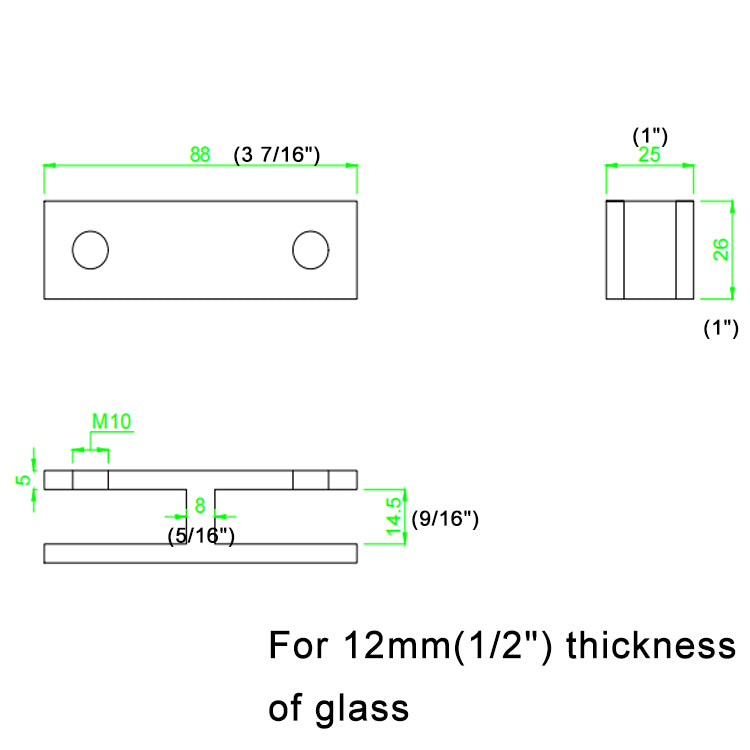

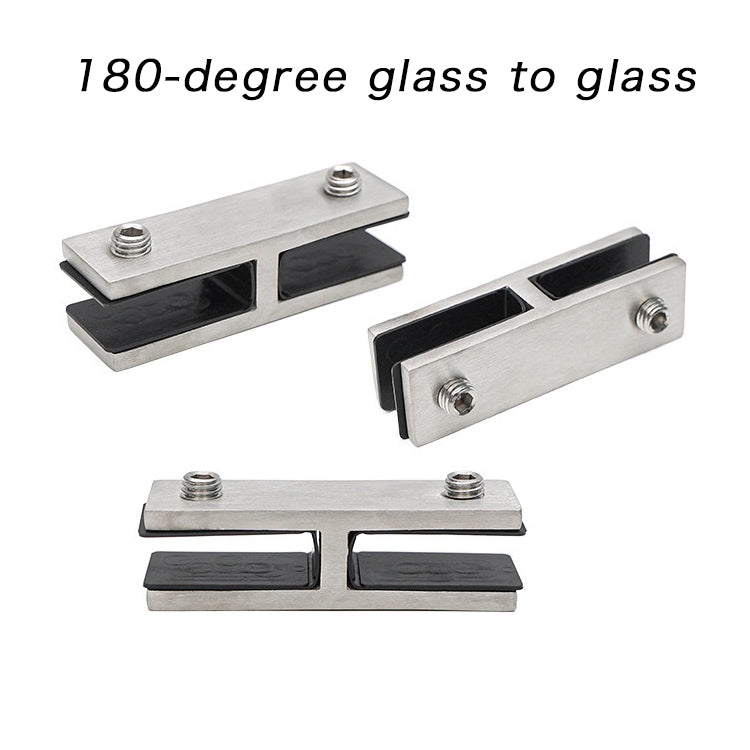

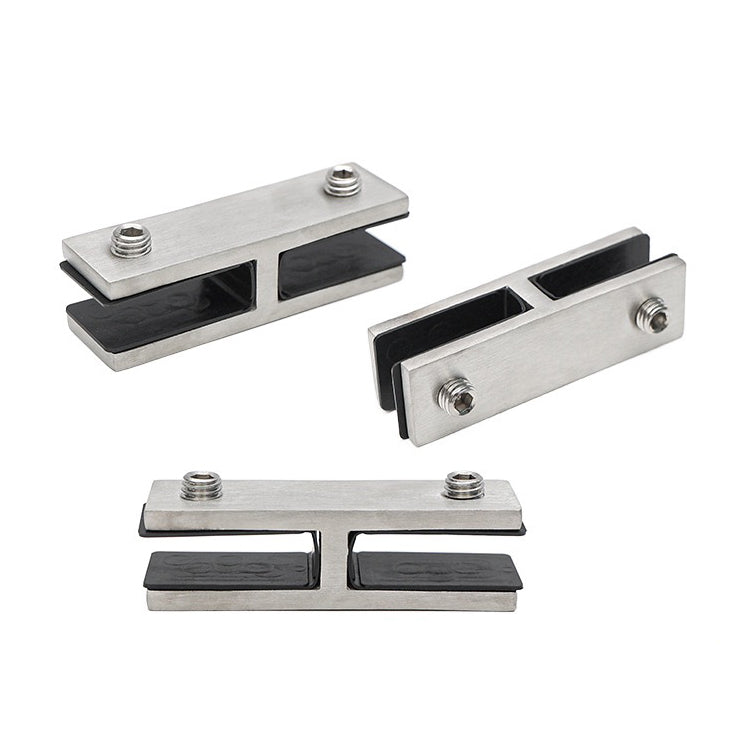

180° Inline Glass Clamp for 12 mm Glass

This version is designed for 12 mm (1/2") glass and is used where two glass panels need to be connected in a straight line. Based on the drawing, the reference dimensions are approximately: 88 mm length 26 mm height 25 mm width This option is suitable for straight glass panel alignment in modern railing systems.

Technical Specifications

Model: G01 Product Type: Glass Clamp Series: Accessories Standard Size: 55 × 82 mm / 2 3/16" × 3 1/4" Material Options: 304 stainless steel / 316 stainless steel / 2205 stainless steel Finish Options: Matte black / Satin / Polished Available Structures: 90° corner clamp / 180° inline clamp Glass Thickness Options: 12 mm / 18 mm

Applications

This stainless steel glass clamp is suitable for a variety of applications, including: Glass railing systems Staircase glass railings Balcony glass railings Interior glass partitions Straight-line glass connections Corner glass fixing applications Residential and commercial architectural projects

Why Choose ESQhardware

At ESQhardware, we focus on contemporary railing and architectural hardware with a clean and minimalist design language. Our glass clamp solutions are developed to combine reliable functionality with refined appearance, giving project buyers flexible options for different glass thicknesses and connection structures.

Whether your project requires a compact 90-degree corner clamp or a straight 180-degree inline clamp, ESQhardware can support modern railing systems with practical and professional hardware solutions.
